RevX X-FLOW Cold Plunge Filtration System – 24/7 Circulation, UV-C & 20-Micron Filtration

Overview

Keep your cold-plunge water cleaner and easier to manage with the RevX X-FLOW Filtration System, an all-in-one water circulation, UV-C treatment, and fine-filtration system designed specifically for cold plunges and ice baths.

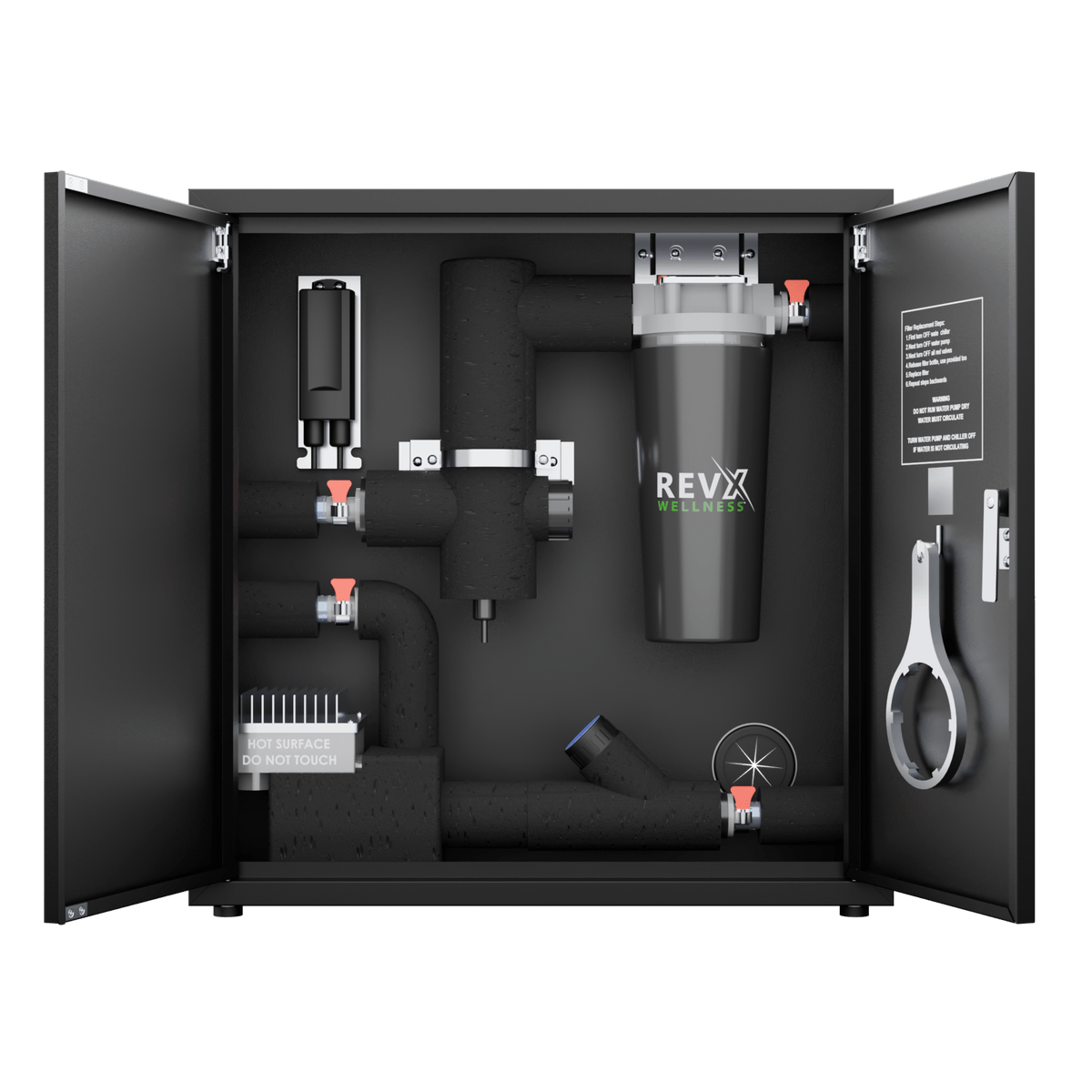

The X-FLOW combines a 200W high-flow pump with integrated heat sink, 18W UV-C sterilizer, and 20-micron pleated sediment filter into a pre-assembled system designed for continuous circulation.

By continuously circulating and filtering the water, X-FLOW helps remove suspended debris while UV-C treatment provides an additional layer of water sanitation. The system is designed for both residential and commercial cold-plunge applications.

Key Features

• High-Flow 200W Pump – Provides continuous water circulation with an integrated heat sink designed to minimize heat transfer into the cold water.

• Approx. 2,720+ GPH Throughput – High-volume circulation helps maintain consistent water movement throughout the plunge system.

• 18W UV-C Sterilizer – Uses UV-C treatment to help reduce microorganisms in circulating water and minimize reliance on chemical treatment.

• 20-Micron Pleated Filter – Captures fine debris, hair, skin cells, and sediment for cleaner, clearer water.

• 10-Inch Filter Cartridge – Standard pleated cartridge design provides convenient filtration maintenance.

• Plug-and-Play Design – Pre-assembled system simplifies installation and connection to compatible cold-plunge plumbing.

• 1-Inch Barb Connections – Designed for connection to standard cold-plunge plumbing using universal 1-inch plumbing barb fittings.

• 24/7 Circulation Capability – Designed for continuous operation in residential and higher-use cold-plunge environments.

• Indoor & Outdoor Use – Components are designed for indoor or outdoor installation, with IPX4-rated components.

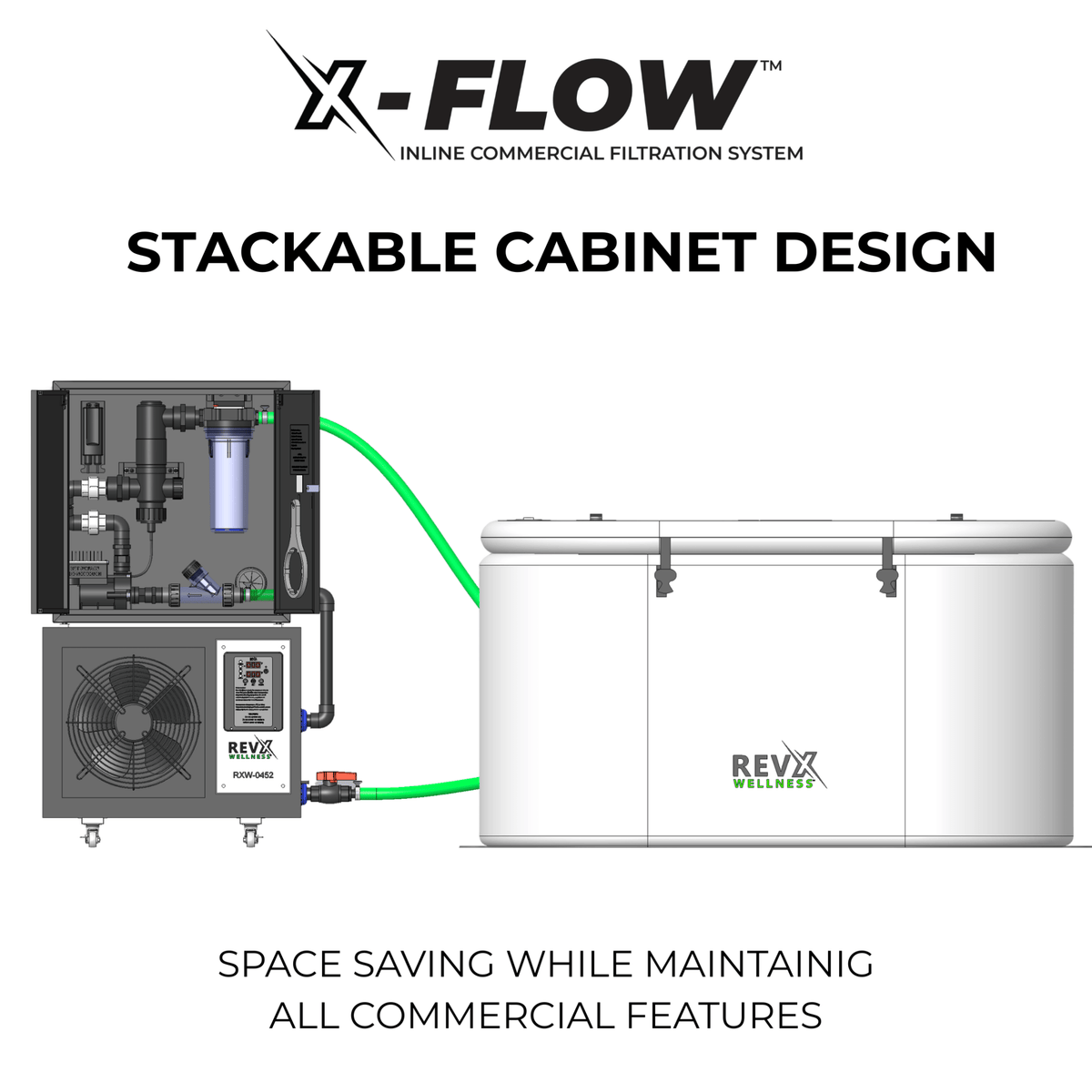

• Chiller Integration Development – A new plumbing kit is being developed to allow the X-FLOW system to stack on top of RevX chillers. Availability is planned for late July or early August 2026, according to the manufacturer.

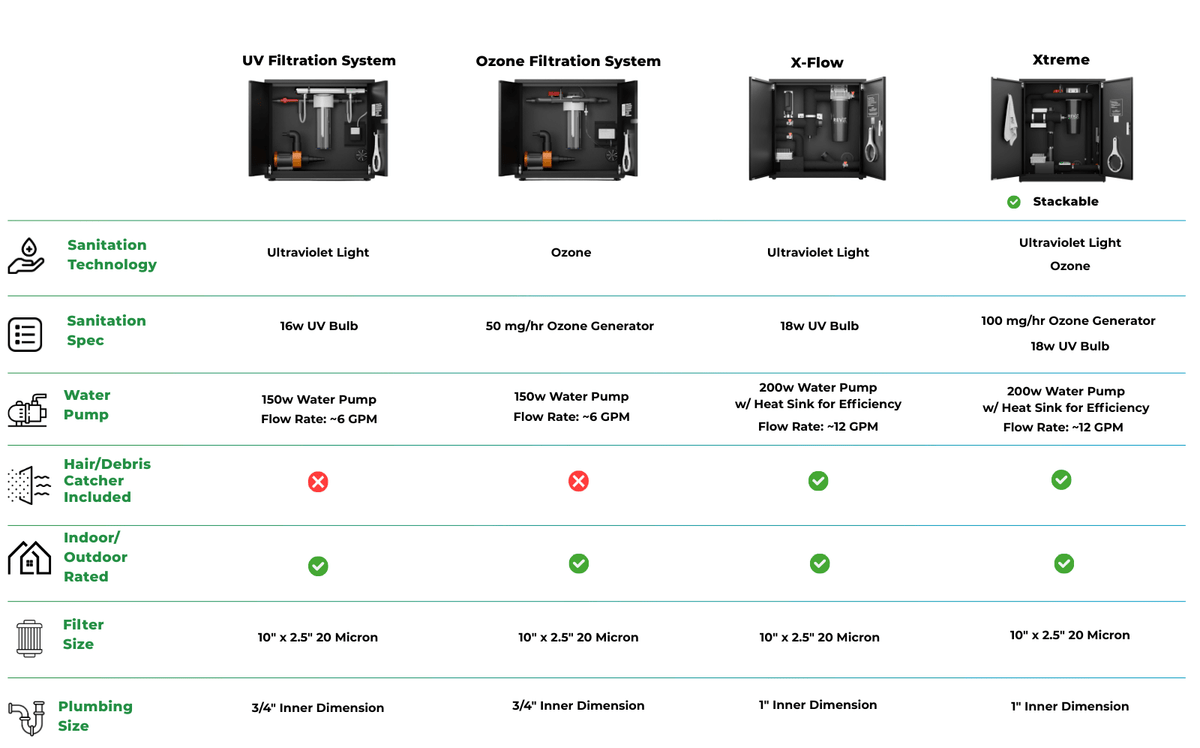

Specifications

*Actual flow may vary depending on plumbing configuration, hose length, fittings, water resistance, and installation conditions.

Maintenance

For optimal filtration performance, the manufacturer recommends replacing the 20-micron filter cartridge approximately every 2–4 weeks, depending on usage.

Higher-frequency use may require more frequent cartridge replacement.

Important Note on the Upcoming Plumbing Kit

The manufacturer is developing a new plumbing kit intended to allow the X-FLOW to be stacked on top of compatible RevX Chillers. The manufacturer currently lists anticipated availability for late July or early August 2026.

Availability and compatibility should be confirmed before ordering.

What's Included

The X-FLOW system is supplied as a pre-assembled filtration and circulation unit with its integrated pump, UV-C treatment system, and filter assembly.

Compatible cold-plunge plumbing connections are required for installation.
